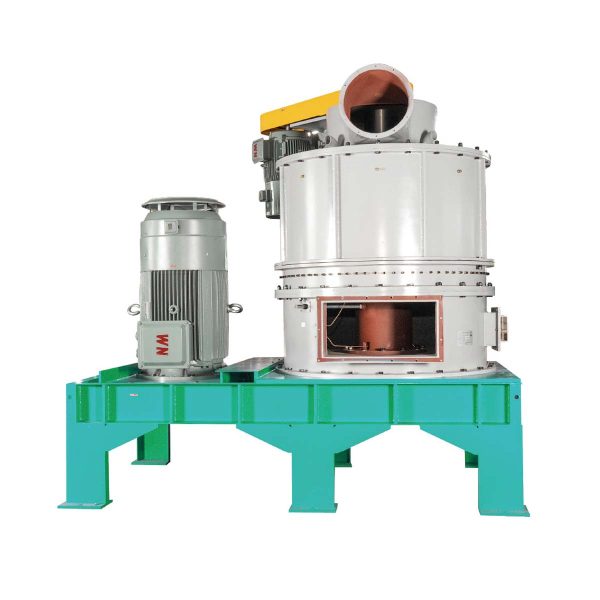

Air Classifier Mill – Split-Axis Vertical

Separate shaft design, due to the use of independent bearing housing design, the so that the heat generated by the bearings during the crushing can be distributed in time. So the stability of the model is very high, can meet the 24h non-stop operation requirements.Many models, to meet the needs of different production.

marketing@jacantech.com I need solutions

JACAN TECH

How It Works

Technical breakdown of the core processes and technology behind Air Classifier Mill – Split-Axis Vertical.

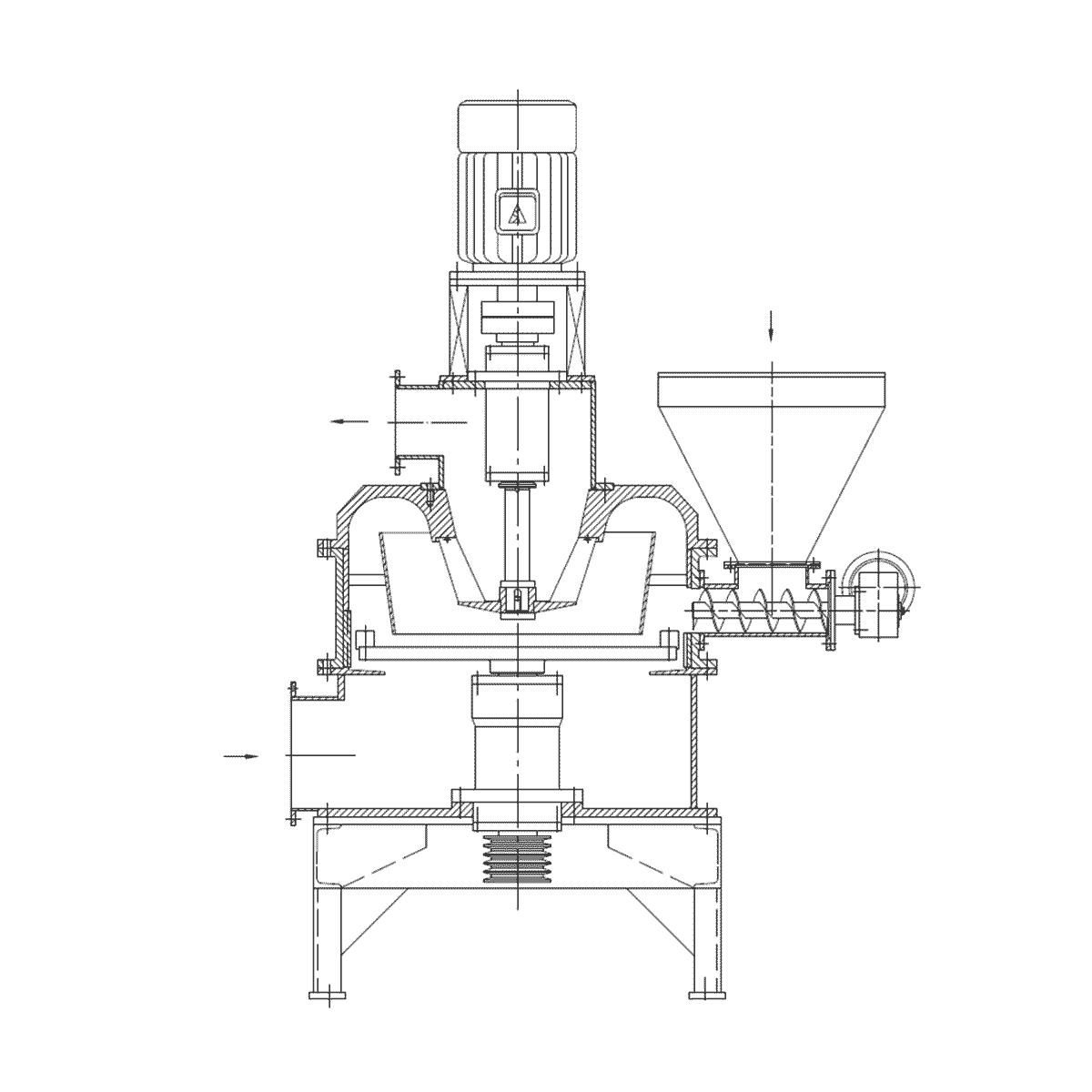

The inner cavity of the machine body is cylindrical, the upper section is an air classifier and the lower section is an ultra-fine grinding mill. The grinding chamber is composed of a grinding disc and a grinding block, which is used to crush materials into fine powder. The grading chamber is composed of a classifying impeller, which can separate fine powder into two types of particle specifications: qualified and unqualified. The qualified particles are discharged through the discharge pipe and collected by the cyclone collector. Unqualified particles will return to the grinding chamber along the inner wall of the cavity and continue shattered.

The grinding disc and classifying impeller are driven by their respective driving systems, the speed of the classifying impeller is adjustable to meet different size requirements. The spiral feeding system is located on the inner wall of the machine and is used to send materials uniformly into the grinding chamber, the amount can be adjusted by rotational speed.

JACAN TECH

Performance and Features

Uncompromising performance and innovative design, optimized for high-efficiency production and durability.

Dual-axis Grading & Precision Control

Adopting an innovative dual-axis design with a built-in professional classifier, it breaks through traditional accuracy bottlenecks and ensures superior particle size uniformity.

Online Tuning & Zero Downtime

Product granularity can be flexibly adjusted by changing the impeller speed without stopping the machine, eliminating tedious parts replacement and boosting efficiency.

Imported Components & Longevity

Core transmission systems use premium imported bearings and belts, ensuring stable operation, extending service life, and reducing maintenance frequency.

High-spec Parts & Low Failure Rate

Equipped with high-specification imported accessories, the machine minimizes operational failures and saves long-term maintenance costs for continuous production.

Custom Components & Expert Upgrades

Supports exclusive grinding and classifying components based on material traits, upgrading general equipment to industry-specific models for higher yields.

Multi-material Adaptability & Customization

Ideal for materials under Mohs 3.5; offers specialized internal structures for corrosive or high-viscosity materials to ensure processing quality.

JACAN TECH

Technical Parameters

Air Classifier Mill – Split-Axis Vertical defines excellence through quantified data, meeting the most stringent requirements of high-precision material processing.

Parameters / Model JCSM-V	280	350	410	510	630	710	800	900	1000	1100	1250	1500	2000
Grinding motor power (kW)	7.5	11	22	30	37	45	55	75	90	110	160	200	355
Classification motor power (kW)	2.2	3	4	5.5	7.5	7.5	11	15	18.5	22	30	45	55
Particle size (μm)	12 - 150	12 - 150	12 - 150	12 - 150	10 - 120	10 - 120	10 - 120	10 - 120	8 - 120	8 - 120	8 - 120	8 - 120	8 - 120
Air volume(max) (m³/h)	720	1200	1800	3000	3600	4500	5400	8000	10000	12000	16500	22500	36000
